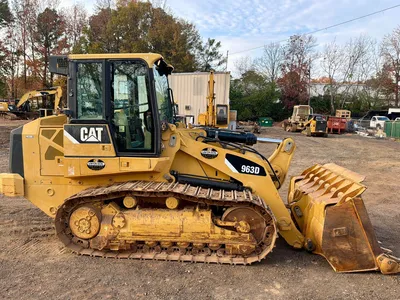

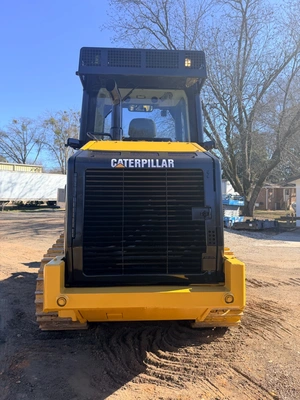

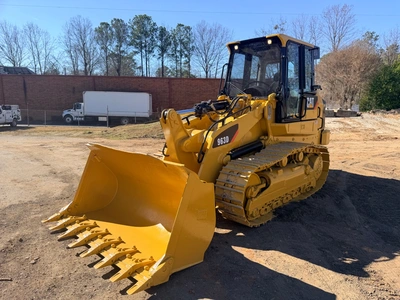

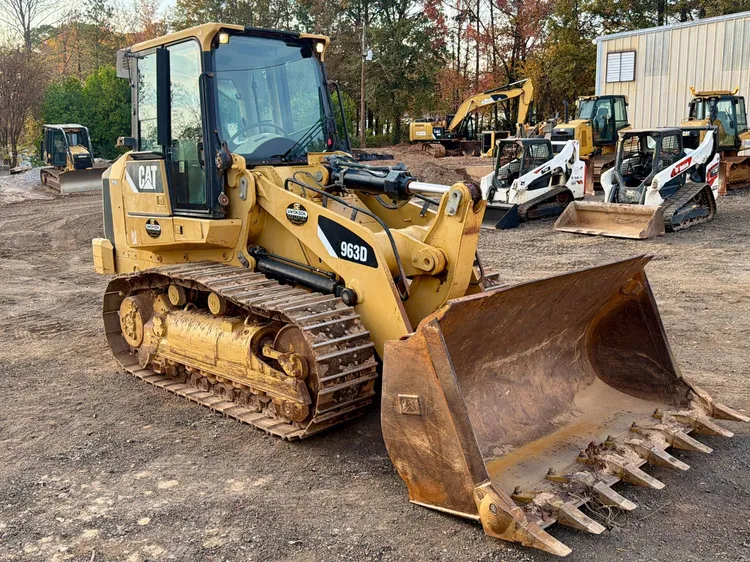

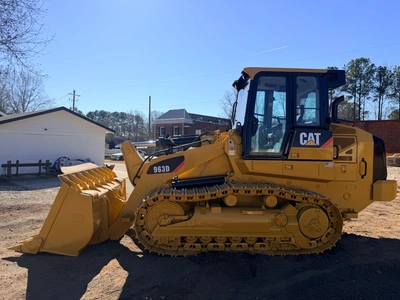

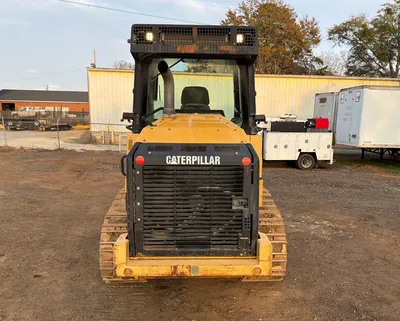

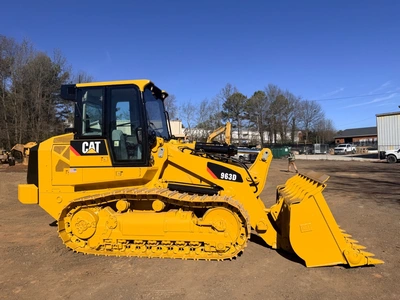

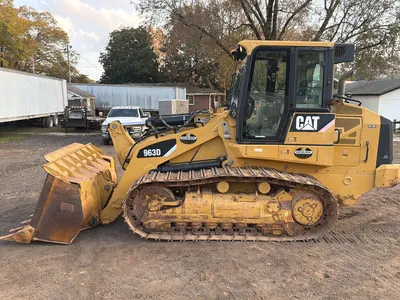

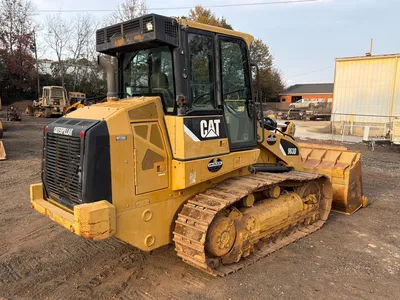

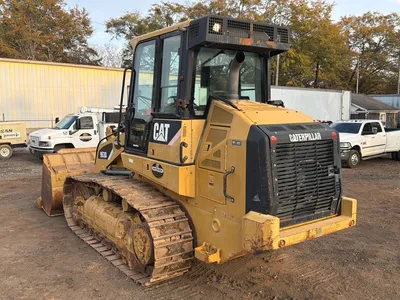

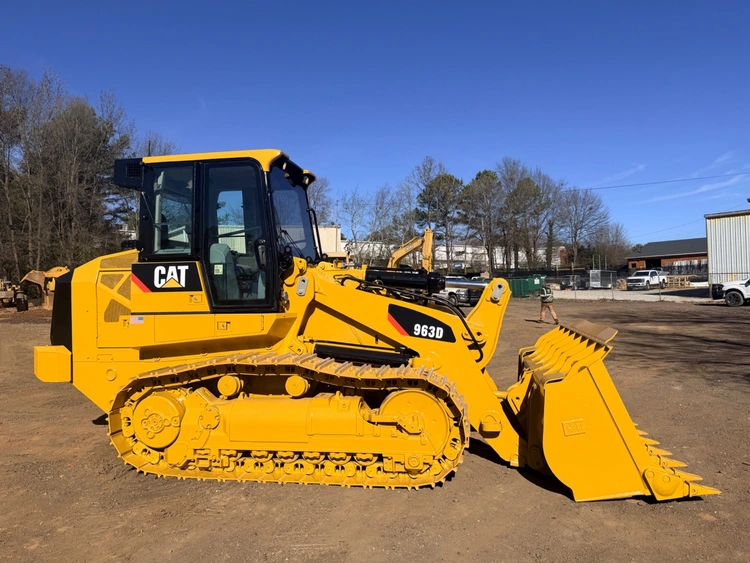

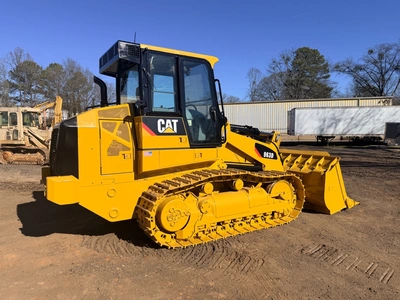

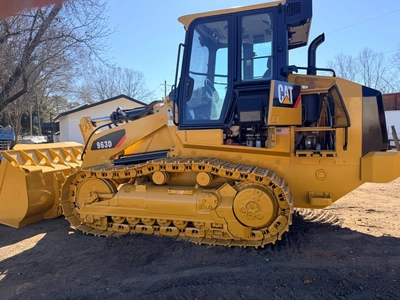

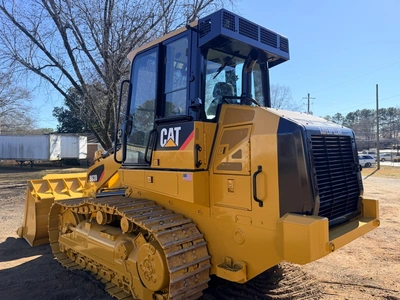

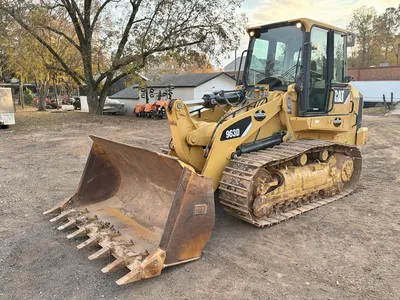

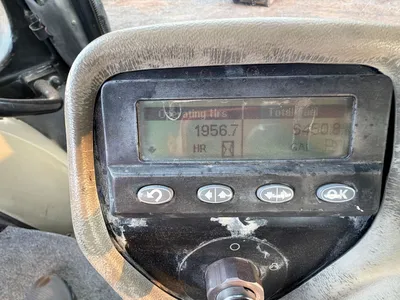

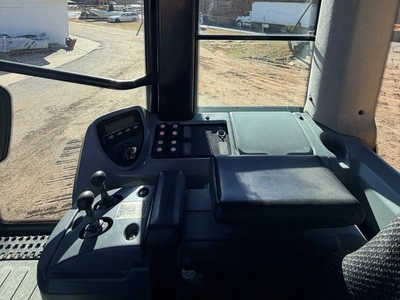

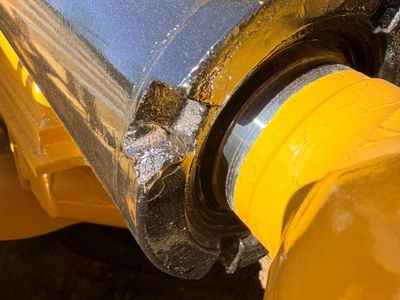

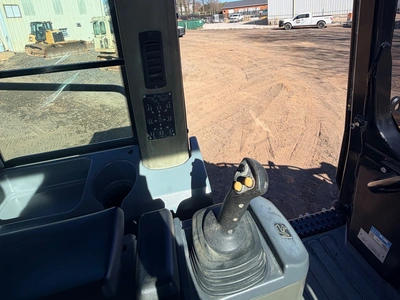

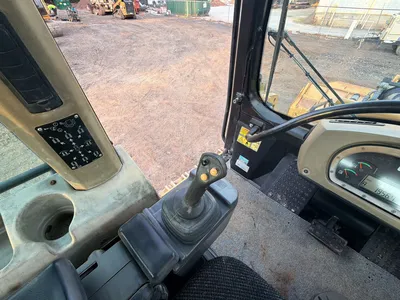

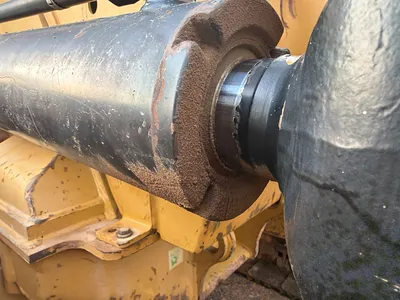

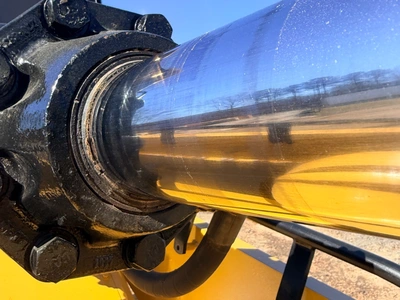

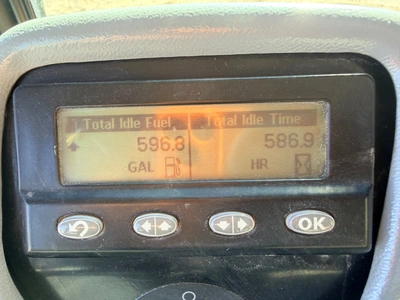

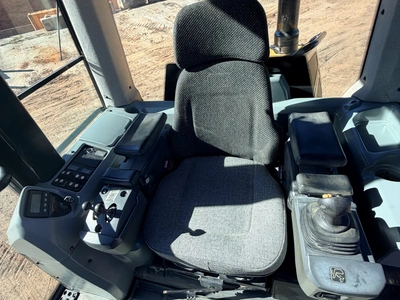

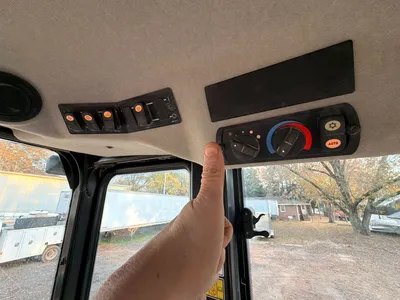

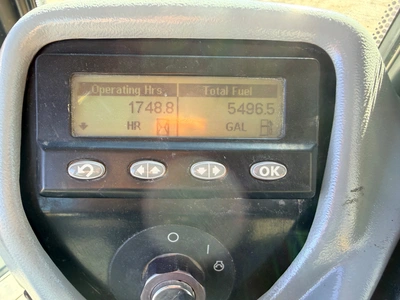

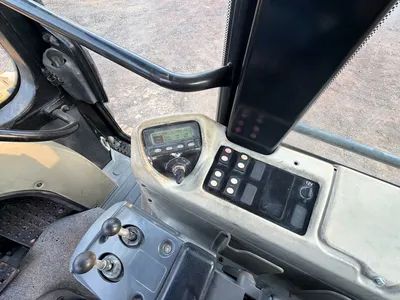

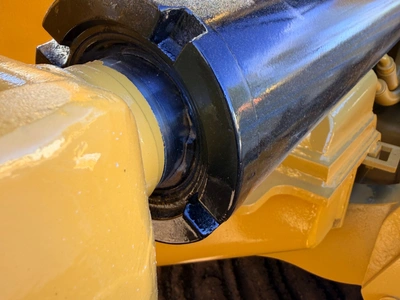

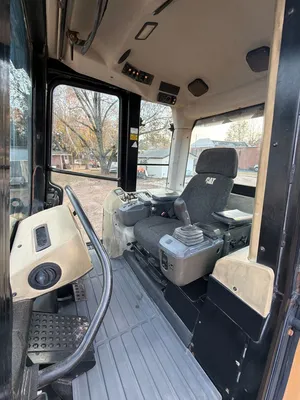

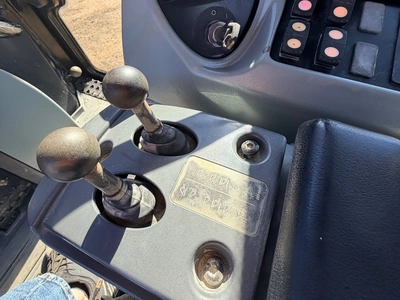

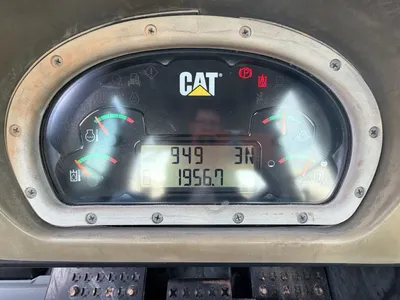

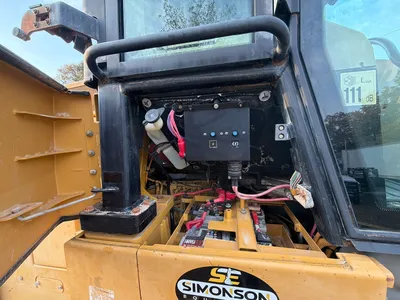

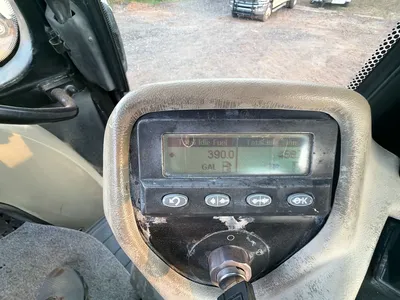

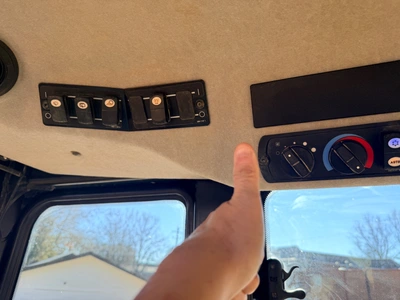

2008 CATERPILLAR 963D

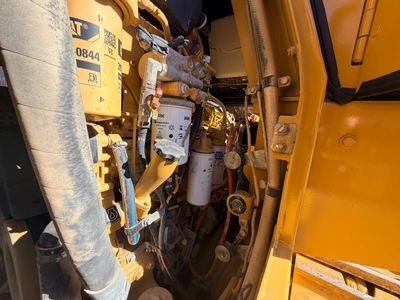

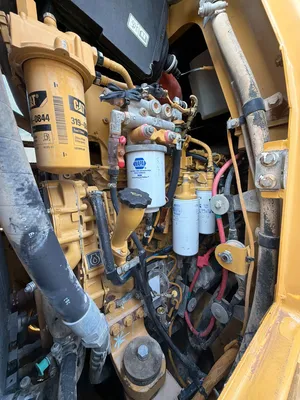

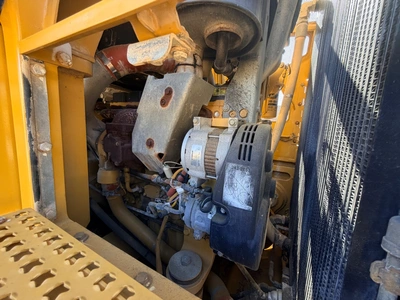

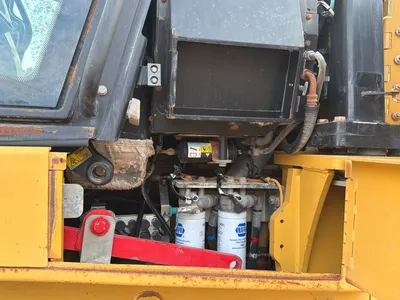

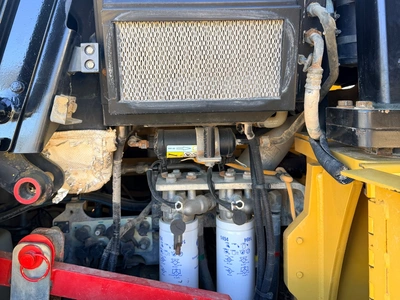

Engine
Engine Model Cat®
C6.6 ACERT™
Flywheel Power 141 kW 189 hp
Net Power – Caterpillar 141 kW 189 hp
Net Power – ISO 9249 141 kW 189 hp
Net Power – SAE J1349 141 kW 189 hp
Net Power – EEC 80/1269 141 kW 189 hp
Bore 105 mm 4.13 in
Stroke 127 mm 5 in
Displacement 6.6 L 403 in3

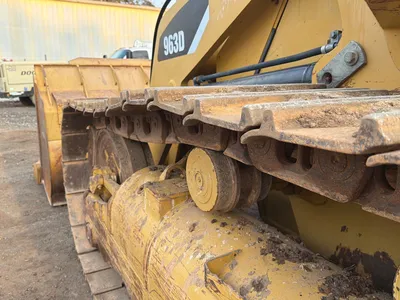

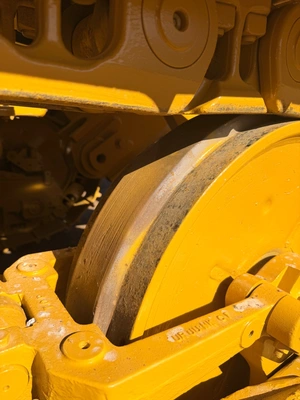

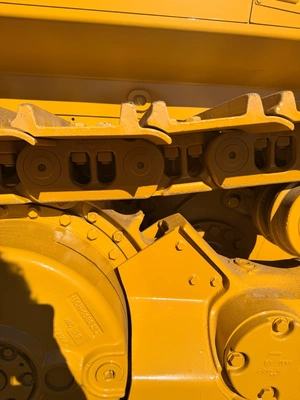

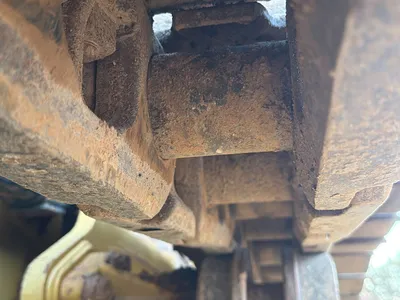

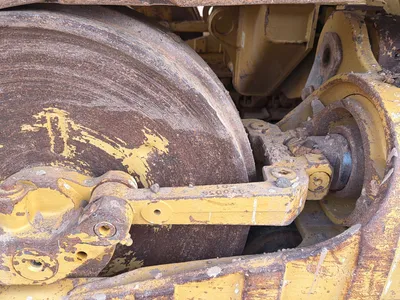

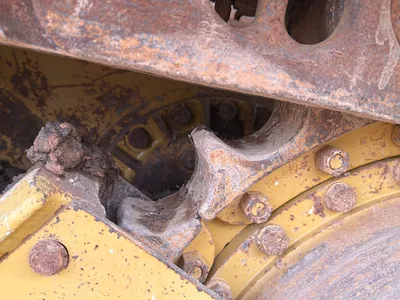

Undercarriage
Track Shoe Type Double Grouser
Track Shoe Width – Standard 550 mm 21.6 in
Track Shoe Width – Optional 450 mm 17.7 in

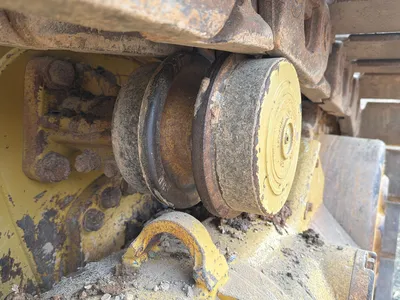

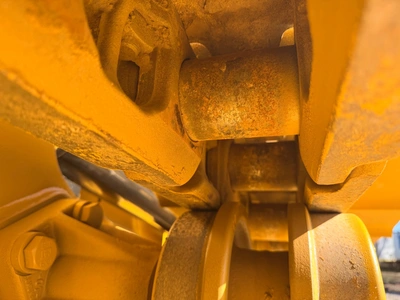

Track Rollers – Each Side 7
Number of Shoes – Each Side 38
Track on Ground 2542 mm 100 in
Ground Contact Area – 2.8 m2
4,340 in2
Standard Shoe
Ground Contact Area – 2.3 m2
3,565 in2
Optional Shoe
Ground Pressure – 70.9 kPa 10.3 psi
Standard Shoe
Ground Pressure – Optional Shoe 85.5 kPa 12.4 psi
Grouser Height – Double Grouser 42 mm 1.65 in
Track Gauge 1850 mm 72.8 in
Drive System
Track Motor Two, variable
displacement,
bent axis motors
Drive System Hydrostatic drive with
infinite machine speeds
to 10.0 km/h (6.2 mph)
Drive Pump Two, variable displacement,
slipper-type axial
piston pumps
Track Motor Two, variable displacement,
bent axis motors
Relief Valve Setting 47 500 kPa (6,890 psi)
Service Refill Capacities
Fuel Tank 400 L 105.6 gal
Cooling System 31.5 L 8.3 gal
Crankcase (with Filter) 16.5 L 4.4 gal
Final Drives (each) 15 L 4 gal
Hydraulic Tank 90 L 23.7 gal
Pivot Shaft 1.8 L 0.5 gal
Weights
Operating Weight 20 220 kg 44,577 lb

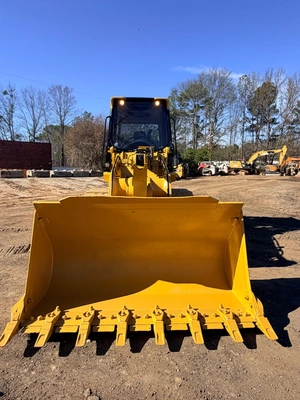

Buckets
Capacity – General Purpose 2.45 m3
3.2 yd3
Capacity – Multi-Purpose 1.9 m3
2.48 yd3
Bucket Width – General Purpose 2612 mm 102.8 in
Bucket Width – Multi-Purpose 2575 mm 101.3 in
Ripper Specifications
Type Radial
Number of pockets 3
Overall Width/Beam 1950 mm 76.7 in
Shank cross section 58.5 mm 50 in
138 mm 5.4 in
Ground Clearance 595 mm 23.4 in
Penetration 295 mm 11.6 in
Ripping Width 1836 mm 72.3 in
Cylinders – Bore 114.3 mm 4.49 in
Cylinders – Stroke 289 mm 11.3 in
Addition to Machine Length due 610 mm 24 in
to Ripper (in Transportation
Position)

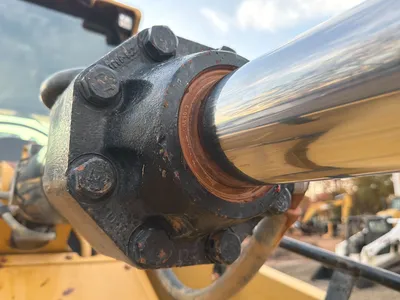

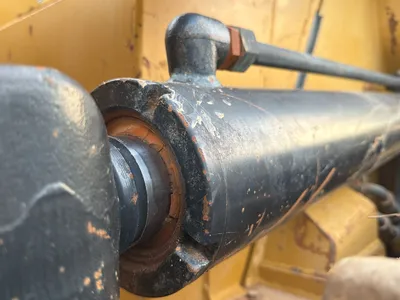

Hydraulic System – Equipment
Type Closed center,
load sensing/piston
Output 209 L/min 55.2 gal/min
Main Relief Valve Setting 27 500 kPa 3,989 psi
